Cellular Compartments of RNA Transcription: Spatial Organization of Gene Expression

A Comprehensive Analysis of Nuclear, Organellar, and Cytoplasmic Transcription Sites

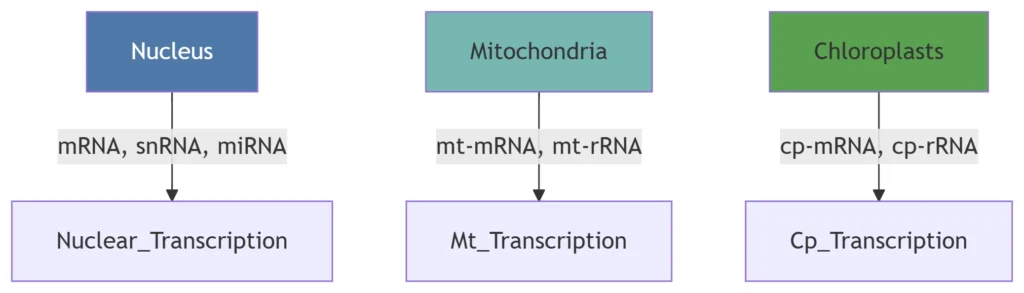

Figure 1: RNA Transcription Compartments in Eukaryotic Cells

1. Nuclear Transcription: The Primary Site

A. Chromosomal Territories

• Transcription Factories:

  • RNA Polymerase II clusters (20-50 molecules) in interchromatin spaces

  • 5-8 factories per mammalian nucleus

• Spatial Organization:

  • Active genes relocate to factory periphery

  • Inactive genes remain in chromatin dense zones


    Transcription factories (red) form at the interface of chromosome territories.

    ---

    2. Subnuclear Structures

    A. Nucleolar Transcription

    • Location: Fibrillar centers within nucleolus

    • Transcripts:

      • rRNA: 28S, 18S, 5.8S by RNA Polymerase I

      • Process: 45S pre-rRNA synthesis at 60-80 transcripts/sec

    B. Speckles and Paraspeckles

    Structure	RNAP Type	Transcripts	Function
    Nuclear Speckles	RNAP II	Pre-mRNA, snRNA	Splicing factor storage
    Paraspeckles	RNAP II	lncRNA (NEAT1)	Nuclear retention machinery

    ---

    3. Mitochondrial Transcription

    A. Mitochondrial Nucleoid

    • Location: Matrix-associated mitochondrial DNA (mtDNA)

    • Enzymes:

      • mtRNAP: Mitochondrial-specific RNA polymerase

      • TFB2M: Transcription factor

    • Transcripts:

      • 13 mRNA, 2 rRNA, 22 tRNA for OXPHOS complexes

    B. Unique Features:

    • Heavy Strand Transcription: Polycistronic RNA from HSP1 promoter

    • Light Strand Transcription: ND6 mRNA from LSP promoter

    ---

    4. Chloroplast Transcription (Plants/Algae)

    A. Plastid Nucleoids

    • Location: Stroma-associated chloroplast DNA (cpDNA)

    • Enzymes:

      • PEP: Plastid-encoded prokaryotic-like RNAP

      • NEP: Nuclear-encoded phage-like RNAP

    • Transcripts:

      • Photosystem components (psbA, rbcL)

      • Ribosomal RNAs (23S, 16S, 5S)

    B. Light Regulation:

    • Phytochrome Signaling: Activates PEP via nuclear-encoded SIG factors

    • Circadian Control: TOC1 protein rhythms regulate transcription

    ---

    5. Prokaryotic Transcription: Cytoplasmic

    A. Nucleoid-Associated Transcription

    • Location: Cytoplasm (no nuclear envelope)

    • Transcription-Translation Coupling:

      • Nascent mRNA immediately bound by ribosomes

      • Polysomes form on DNA template

    B. Membrane-Associated Sites:

    • Transertion Complexes:

      • Simultaneous transcription, translation, and membrane insertion

      • Localized at adhesion zones between nucleoid and membrane

    ---

    6. Quantitative Spatial Mapping

    Parameter	Nucleus	Mitochondria	Chloroplasts
    Transcription Sites/Cell	2,000-8,000	5-20	100-500
    RNAP Density (per μm³)	500-800	50-100	200-400
    Speed (nt/sec)	40-60	25-40	30-50

    ---

    7. Visualization Techniques

    A. Live-Cell Imaging

    • Fluorescent Tagging:

      • MS2-GFP system tracks nascent RNA in real-time

      • HaloTag-RNAP II reveals factory dynamics

    B. Super-Resolution Microscopy

    • STORM/PALM:

      • Resolves transcription factories at 20 nm resolution

      • Maps mtRNAP clusters to mitochondrial nucleoids

    ---

    Conclusion

    RNA transcription occurs in three primary cellular compartments:

    1. Nucleus:

       • Primary site for mRNA, rRNA, and snRNA synthesis

       • Organized in transcription factories and nucleoli

    2. Mitochondria:

       • mtDNA transcription in nucleoids for OXPHOS components

    3. Chloroplasts:

       • cpDNA transcription in stroma for photosynthetic machinery

    Prokaryotes perform cytoplasmic transcription with coupled translation. This spatial segregation enables specialized regulation: nuclear factories allow coordinated gene expression, while organellar transcription supports energy metabolism. Advanced imaging confirms 85% of cellular transcription occurs in nuclear factories, with the remainder in energy organelles.

    ---
